FLOW MEASUREMENT
Reynolds number is a dimensionless parameter used to describe the relationship between inertial and viscous effects in flowing fluid.
In flow measurement, it helps engineers understand flow regime and assess how velocity, pipe diameter, density and viscosity can influence meter behaviour.
Reynolds Number in Flow Measurement: Calculation, Flow Regimes and Why It Matters
Reynolds number in flow measurement is important because the same flow meter can behave differently when the fluid changes from a predominantly laminar condition to a turbulent condition. Reynolds number provides a practical way to describe that flow regime.
It is especially useful when evaluating pipe flow, velocity profiles, calibration conditions, meter sizing and the influence of fluid viscosity. It is not a direct measure of flow rate, but it provides valuable context for understanding the flow condition in which a meter operates.
In simple terms: Reynolds number compares inertial effects with viscous effects. A lower value indicates that viscosity has a stronger relative influence, while a higher value indicates that inertial effects are more dominant.
What Is Reynolds Number?
Reynolds number, represented by Re, is a dimensionless number used in fluid mechanics to characterize flow behaviour.
Reynolds number formula
Re = ρ × v × D ÷ μ
ρ is fluid density, v is average velocity, D is characteristic diameter and μ is dynamic viscosity.
For a circular pipe, the pipe internal diameter is normally used as the characteristic length. Reynolds number has no unit because the units cancel during calculation.
How to Calculate Reynolds Number
To calculate Reynolds number for flow inside a circular pipe, you need four main parameters: fluid density, average velocity, internal pipe diameter and dynamic viscosity.
Density
+
Velocity
+
Pipe diameter
+
Viscosity
→
Reynolds number
Worked example
Consider water with a density of 998 kg/m³, an average velocity of 1.5 m/s, an internal pipe diameter of 0.05 m and dynamic viscosity of 0.001 Pa·s.
Re = 998 × 1.5 × 0.05 ÷ 0.001
Re ≈ 74,850
This is a high Reynolds number, indicating that inertial effects are strongly dominant and the flow is in the turbulent region for ordinary internal pipe flow.

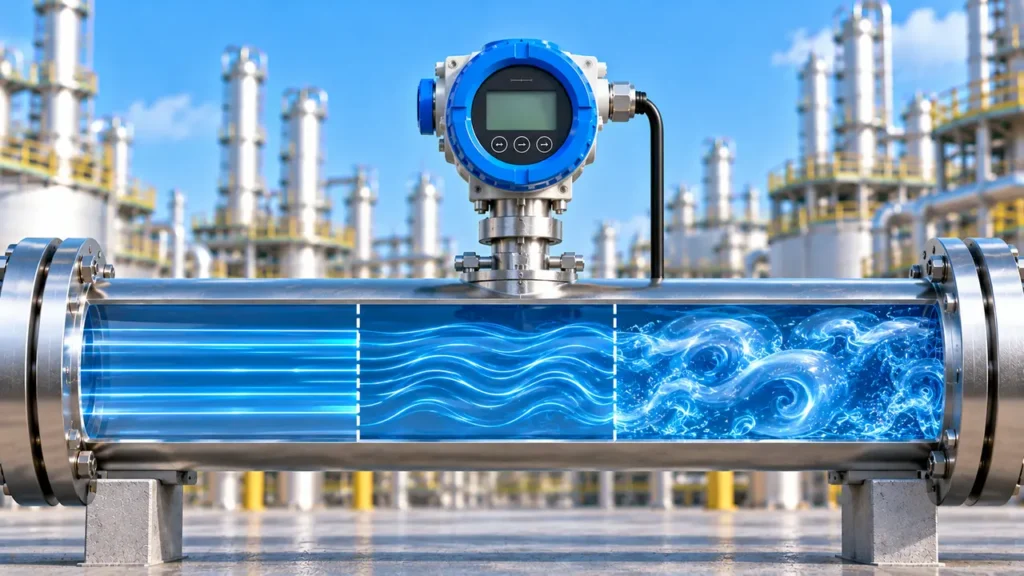

Laminar, Transitional and Turbulent Flow
For fully developed flow in a circular pipe, engineers commonly use approximate Reynolds number ranges to describe the flow regime.
| Approximate Reynolds number | Flow regime | General description |
|---|---|---|
| Below about 2,000 | Laminar | Viscous effects are dominant and fluid layers tend to move in an orderly manner. |
| About 2,000 to 4,000 | Transitional | Flow behaviour can change between laminar and turbulent conditions. |
| Above about 4,000 | Turbulent | Inertial effects dominate and the flow contains strong mixing and fluctuations. |
These boundaries are commonly used engineering guidelines for internal pipe flow. Actual transition behaviour can be influenced by disturbances, pipe condition, geometry and application conditions.
Why Reynolds Number Matters in Flow Measurement
Flow meter performance is affected by the condition of the fluid entering the measuring section. Reynolds number helps describe one part of that condition, particularly where viscosity and velocity influence the flow profile or the relationship between flow velocity and meter response.
Flow profile
Laminar and turbulent flows develop different velocity profiles across a pipe. Because many flow meters respond to the velocity distribution through their measuring section, the flow profile can influence measurement performance.
Viscosity effects
For a given pipe and flow rate, changes in viscosity can change Reynolds number. This is particularly relevant for liquids whose viscosity varies significantly with temperature.
Calibration conditions
A meter calibrated under one set of fluid conditions may operate under different conditions in the plant. Reynolds number can help engineers understand whether the calibration and operating conditions are hydraulically similar.
For additional background on flow meter calibration, see methods used to calibrate flow meters with gases.
For a practical example of pulse-based flow measurement, see flow meter K-factor calculations.
Reynolds Number and Velocity
Velocity is directly present in the Reynolds number equation. If all other parameters remain constant, increasing velocity increases Reynolds number.
Velocity relationship
Re ∝ v
When density, pipe diameter and viscosity remain constant, Reynolds number is proportional to average velocity.
This is one reason the flow regime can change as process flow rate changes. A system may operate at a relatively low Reynolds number during minimum flow and at a much higher Reynolds number during normal or maximum flow.
Reynolds Number and Pipe Diameter
Pipe diameter also appears directly in the Reynolds number equation. A larger internal diameter increases Reynolds number when the other parameters remain constant.
However, diameter also changes the velocity for a given volumetric flow rate. Therefore, when comparing different pipe sizes, engineers should calculate velocity and Reynolds number together rather than considering diameter in isolation.
Velocity from flow rate
v = Q ÷ A
For a circular pipe, A = πD² ÷ 4.
Reynolds Number and Viscosity
Dynamic viscosity has an inverse relationship with Reynolds number. If viscosity increases while density, velocity and pipe diameter remain constant, Reynolds number decreases.
Viscosity relationship
Re ∝ 1 ÷ μ
Higher viscosity generally produces a lower Reynolds number when the other variables remain constant.
This matters in applications involving oils, chemicals, polymers and other viscous fluids. Temperature can also change viscosity, so the process temperature should be considered when estimating Reynolds number.
Our tip: For viscous liquids, do not assume that a meter's performance at water like conditions will automatically represent its performance at the actual process viscosity. Check the manufacturer's application data and operating limits.
Reynolds Number and Flow Meter Technology
Reynolds number does not determine which flow meter technology is automatically correct. Instead, it is one of several engineering parameters used to understand the application.
| Application factor | Why it matters |
|---|---|
| Reynolds number | Describes the relative influence of inertial and viscous effects. |
| Flow range | Defines minimum, normal and maximum operating conditions. |
| Fluid viscosity | Can affect pressure loss and meter response for some technologies. |
| Pipe diameter | Affects velocity, Reynolds number and installation conditions. |
| Flow profile | Can influence the measurement response of many meter types. |
| Accuracy requirement | Determines the measurement performance required from the instrument. |
Our Flow Meter Selection Guide provides a broader framework for evaluating these application parameters.
Reynolds Number and Flow Profile
Reynolds number is closely related to the development of flow inside a pipe, but it should not be treated as a replacement for installation analysis. Elbows, valves, pumps, reducers and other disturbances can distort the velocity profile even when the overall flow is turbulent.
This is why straight pipe requirements and installation conditions remain important during meter selection and commissioning.
Did you know? Two installations can have similar Reynolds numbers but different velocity profiles if one installation contains upstream disturbances. Reynolds number describes the flow regime, while the installation geometry describes how that flow reaches the meter.
Reynolds Number in Different Fluids
| Fluid condition | Typical Reynolds number consideration | Engineering focus |
|---|---|---|
| Low viscosity liquid | Can reach high Reynolds numbers at moderate velocity | Flow regime and profile |
| High viscosity liquid | Can produce lower Reynolds numbers | Viscosity, range and meter suitability |
| Gas | Density and viscosity vary with pressure and temperature | Use actual operating conditions |
| Changing temperature process | Viscosity and density can change | Evaluate operating extremes |
Interactive Reynolds Number Calculator
Calculate Reynolds Number
Enter the fluid density, average velocity, pipe internal diameter and dynamic viscosity in SI units.
Enter values and calculate.
Common Mistakes When Using Reynolds Number
| Mistake | Why it matters | Better approach |
|---|---|---|
| Using the wrong viscosity value | Reynolds number is directly affected by viscosity | Use viscosity at the actual process temperature where possible |
| Using nominal pipe size instead of internal diameter | Velocity and Reynolds number depend on actual internal diameter | Use the actual bore for the calculation |
| Ignoring operating range | Reynolds number changes with velocity | Check minimum, normal and maximum flow |
| Treating Reynolds number as a meter selection rule | Meter selection depends on many parameters | Use it together with fluid, flow, pressure, temperature and accuracy data |
Reynolds Number and Flow Measurement Accuracy
Reynolds number can be one factor affecting flow meter behaviour, but it should not be confused with accuracy itself. Accuracy is the closeness of a measurement to the reference value, while Reynolds number describes a flow condition.
For a broader explanation of flow meter measurement performance, see our guide to flow meter accuracy and repeatability. For turbine meter applications, see the working principle of turbine flow meters.
FAQ About Reynolds Number in Flow Measurement
What does a high Reynolds number mean?
A high Reynolds number means inertial effects are relatively stronger than viscous effects. In ordinary internal pipe flow, sufficiently high Reynolds numbers are associated with turbulent flow.
Can Reynolds number change during operation?
Yes. It can change when flow velocity, fluid density, viscosity or pipe diameter changes. Temperature and pressure changes can therefore affect Reynolds number indirectly through fluid properties.
Why is viscosity important in Reynolds number?
Viscosity represents resistance to deformation within the fluid. Because it appears in the denominator of the Reynolds number equation, higher viscosity generally results in a lower Reynolds number when the other variables remain constant.
Is Reynolds number required for every flow meter selection?
Not every basic selection requires a detailed Reynolds number calculation. However, it can be useful when viscosity, flow regime, calibration conditions or meter performance require closer analysis.
Does turbulent flow always mean better flow measurement?
No. Turbulent flow is not automatically better or worse. The meter still needs suitable installation conditions, an appropriate operating range and a flow profile consistent with its measurement principle and manufacturer's requirements.
Conclusion
Reynolds number in flow measurement provides a useful engineering description of the relationship between inertial and viscous effects in pipe flow. By considering density, velocity, pipe diameter and viscosity, engineers can identify the approximate flow regime and better understand how changing process conditions may affect the measuring environment.
For practical flow meter selection, Reynolds number should be considered alongside flow range, accuracy, pressure, temperature, fluid properties, pipe size and installation conditions.
