FLOW MEASUREMENT
Flow meter pressure drop is an important selection and system design parameter because the meter can consume part of the available process pressure as fluid passes through the measuring section.
Understanding pressure loss helps engineers balance measurement performance, pump requirements, energy consumption and process operating conditions.

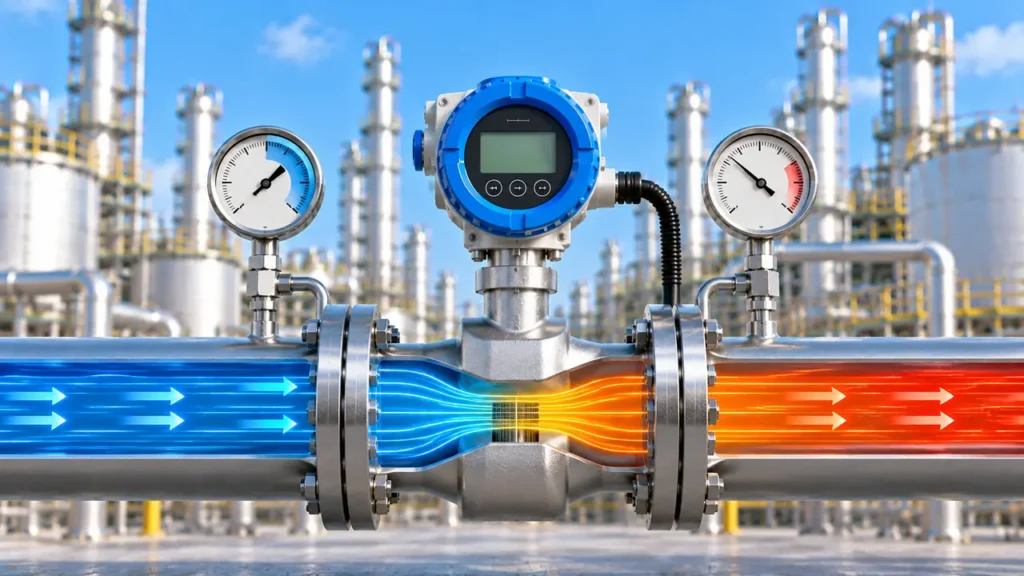

Flow Meter Pressure Drop: Causes, Calculation and How to Reduce It
Flow meter pressure drop is the reduction in fluid pressure that occurs as a fluid passes through a flow meter. Every flow meter introduces some resistance to flow, although the amount varies significantly with the measurement technology, meter size, flow velocity, fluid properties and installation.
Pressure drop should be considered during flow meter selection, especially when the process operates with limited pressure margin or when the fluid is moved by a pump or compressor. A meter that provides suitable accuracy may still be unsuitable if its pressure loss reduces downstream pressure below the required operating condition.
Why it matters: A good flow meter selection considers both measurement performance and the effect of the meter on the process. Pressure loss is therefore a system parameter, not just a meter specification.
What Causes Flow Meter Pressure Drop?
The main cause of pressure drop is resistance to fluid movement through the meter. The internal geometry can create changes in velocity, friction, turbulence, contraction, expansion or flow separation. Different meter technologies create these effects in different ways.
Internal flow restriction
Meters with a relatively restricted internal passage can create a higher pressure loss than meters with a large unobstructed bore. This becomes especially important when the pipe is small or the flow velocity is high.
Flow velocity
Pressure loss generally increases as flow velocity increases. Because velocity is related to volumetric flow rate and pipe area, an undersized meter can produce substantially more pressure loss than a correctly sized meter.
Basic relationship
Q = A × v
Q is volumetric flow rate, A is pipe cross sectional area and v is average fluid velocity.
Fluid properties
Density and viscosity influence how the fluid behaves inside the measuring section. Liquid and gas applications can therefore have very different pressure loss characteristics even when the nominal pipe size is the same.
Meter geometry and technology
Primary elements, internal obstructions and changes in flow path can contribute to pressure loss. In contrast, some full bore technologies introduce very little permanent restriction under normal conditions.
Permanent Pressure Loss vs Differential Pressure
Two pressure terms are often confused. Differential pressure is the pressure difference measured between two points. Permanent pressure loss refers to the pressure that is not recovered downstream after the fluid passes through the meter.
A meter can have a measurable pressure difference across its measuring section without all of that difference becoming permanent process pressure loss. This distinction is important when estimating pump or compressor requirements.
Upstream pressure
→
Flow meter
→
Pressure recovery
→
Downstream pressure
How to Calculate Flow Meter Pressure Drop
The exact calculation depends on the flow meter technology and the manufacturer's published pressure loss data. For many applications, the most reliable approach is to obtain pressure drop information at the actual operating flow rather than applying a generic value.
For a simplified restriction, pressure loss can be related to velocity pressure using a loss coefficient.
Simplified pressure loss relationship
ΔP = K × ρ × v² ÷ 2
ΔP is pressure loss, K is the loss coefficient, ρ is fluid density and v is fluid velocity.
The coefficient K is not a universal constant for every flow meter. It depends on the meter geometry and operating conditions. For practical engineering work, use the manufacturer's tested pressure loss data whenever it is available.
Worked example
Consider a liquid with a density of 1000 kg/m³ flowing at 2 m/s. If a simplified loss coefficient of 0.8 is used for an illustrative calculation:
ΔP = 0.8 × 1000 × 2² ÷ 2 = 1600 Pa
The calculated pressure loss is 1.6 kPa, or approximately 0.016 bar. This is an illustration of the calculation method. Actual meter pressure loss should be taken from the selected meter's technical data.
How Meter Size Affects Pressure Drop
Meter sizing has a direct influence on flow velocity and therefore on pressure loss. A smaller internal diameter produces a higher velocity for the same volumetric flow rate.
| Selection condition | Typical effect on pressure loss | Engineering consideration |
|---|---|---|
| Meter correctly sized for operating flow | Controlled pressure loss | Balance accuracy, range and process requirements |
| Meter significantly undersized | Higher velocity and higher pressure loss | Check process pressure margin carefully |
| Meter oversized | Lower velocity and often lower pressure loss | Check low flow accuracy and turndown |
| Large unobstructed bore | Usually low permanent restriction | Useful where pressure loss is critical |
Our tip: Do not select a meter only from the nominal pipe size. Compare the actual minimum, normal and maximum flow rates with the meter's recommended operating range and pressure loss data.
Pressure Drop Across Common Flow Meter Technologies
Different technologies produce different hydraulic effects. The actual pressure loss depends on the model and operating point, so the table below should be used as a general engineering comparison rather than a substitute for manufacturer data.
| Flow meter technology | General pressure loss characteristic | Important consideration |
|---|---|---|
| Electromagnetic | Often very low because there is no internal obstruction in a full bore design | Suitable when low permanent pressure loss is important |
| Ultrasonic | Usually very low for many full bore designs | Installation and pipe condition remain important |
| Vortex | Can produce measurable pressure loss through the bluff body | Check pressure loss at maximum flow |
| Variable area | Pressure loss depends on float and tube geometry | Review loss at operating flow |
| Turbine | Internal rotor creates resistance | Check pressure loss together with velocity and viscosity |
| Differential pressure primary element | Pressure loss can be significant | Evaluate permanent loss and available differential pressure |
For more information on electromagnetic measurement principles, see our guide to electromagnetic flow meters.
For another full bore measurement technology, see how an ultrasonic flow meter works, particularly where low permanent restriction is an important consideration.
How to Reduce Flow Meter Pressure Drop
1. Select the correct meter size
Avoid unnecessary restriction caused by selecting a meter that is too small for the normal and maximum flow conditions. At the same time, avoid excessive oversizing because very low operating velocity can create other measurement problems.
2. Consider low restriction technologies
Where process pressure is limited, technologies with an unobstructed or near full bore passage can be considered. The final choice should still account for fluid compatibility, accuracy, installation and operating range.
3. Check the complete operating range
Pressure loss should be checked at minimum, normal and maximum flow where possible. Maximum flow is often the most important point for evaluating pressure loss, while minimum flow is important for measurement performance.
4. Review the process pressure budget
Calculate how much pressure is available upstream and how much pressure the downstream equipment requires. The meter should fit within this pressure budget without creating an unacceptable operating condition.
Pressure Loss Calculator
This simplified calculator estimates pressure loss from a loss coefficient, fluid density and velocity. Use manufacturer data for final equipment selection.
Enter values and calculate.
Flow Meter Pressure Drop and Pump Selection
In pumped systems, additional pressure loss can increase the pressure that the pump must provide to maintain the required flow. The flow meter should therefore be included in the system pressure balance along with valves, strainers, filters, heat exchangers, pipe friction and other restrictions.
If pressure loss is ignored during design, the system may experience insufficient downstream pressure, increased pump duty or unnecessary energy consumption.
Did you know? A small pressure loss at one meter may appear insignificant, but the effect becomes more important in high flow systems, systems with limited pump head and applications where every unit of pressure is valuable.
Flow Meter Pressure Drop During Selection
Our Flow Meter Selection Guide can be used alongside pressure loss evaluation. Start with the process fluid, flow range, pressure, temperature, pipe size and required accuracy, then compare suitable meter technologies.
Pressure loss should be treated as one selection criterion rather than the only criterion. Accuracy, repeatability, turndown, materials, installation requirements, output signals and maintenance requirements also influence the final selection.
For related flow measurement calculations, see flow meter K-factor calculations and the working principle of turbine flow meters.
Common Mistakes to Avoid
| Mistake | Why it can cause problems | Better approach |
|---|---|---|
| Using one generic pressure loss value | Pressure loss changes with flow and meter design | Use the selected model's published data |
| Ignoring maximum flow | Pressure loss can rise significantly at higher velocity | Check the maximum operating condition |
| Choosing the smallest possible meter | Higher velocity can increase pressure loss | Evaluate the complete operating range |
| Oversizing only to reduce pressure loss | Very low velocity may affect measurement performance | Balance pressure loss and measurement range |
When the process has unstable or pulsating conditions, additional hydraulic analysis may also be required. See how to measure pulsating flow in industrial piping for a related application discussion.
FAQ About Flow Meter Pressure Drop
Does every flow meter cause pressure drop?
Yes, a flow meter can introduce some pressure loss, but the amount varies greatly by technology and design. Full bore meters can have very low permanent pressure loss, while meters with internal restrictions can have more significant loss.
Does higher flow increase pressure drop?
Generally, yes. As velocity increases, pressure loss commonly increases. The exact relationship depends on the meter geometry and flow regime.
Is pressure drop the same as differential pressure?
No. Differential pressure is the pressure difference between two measurement points. Permanent pressure loss is the portion that is not recovered downstream.
How can I choose a low pressure drop flow meter?
Compare the manufacturer's pressure loss data at your actual minimum, normal and maximum flow conditions. Also check accuracy, turndown, fluid compatibility and installation requirements before selecting the technology.
Conclusion
Flow meter pressure drop should be evaluated before finalizing a flow measurement system because it affects process pressure, pump requirements and overall system efficiency. The right approach is to compare pressure loss at the real operating conditions while also considering measurement accuracy, turndown and application requirements.
