PRESSURE MEASUREMENT
Pressure in an industrial system is not simply a single measurement. Depending on the application, engineers may need to consider static pressure, dynamic pressure and total pressure to understand how a fluid behaves inside a pipe, duct or process system. Static pressure is particularly important because it represents the pressure exerted by a fluid regardless of the direction of flow and is a fundamental parameter in many pressure measurement applications.
Understanding static pressure helps engineers select suitable pressure instruments, evaluate piping and equipment performance, troubleshoot process problems and design reliable measurement systems. It is used extensively in process plants, HVAC systems, pumps, compressors, ventilation systems and fluid-handling applications.
Static Pressure
Static Pressure is the pressure exerted by a fluid at rest or the pressure that exists within a flowing fluid independent of its velocity. It acts on the walls of a pipe, vessel or duct and can be measured using a suitable pressure connection that senses the local pressure without intentionally converting the fluid's velocity into pressure.
Static pressure is an important parameter in industrial instrumentation because it can be used to monitor process conditions, calculate pressure differences, assess equipment performance and support the operation of control systems.
What Is Static Pressure?
Static pressure is the pressure that a fluid exerts on surfaces surrounding it. In a stationary fluid, it is the pressure present throughout the fluid due to the forces acting on it. In a moving fluid, static pressure still exists and can be considered separately from the pressure associated with fluid velocity.
For example, water flowing through a pipeline has pressure acting against the pipe wall. This wall pressure is related to the static pressure of the fluid. The fluid may also have velocity, but the pressure caused by that velocity is considered separately as dynamic pressure.
Key Point:
Static pressure describes the thermodynamic pressure of the fluid at a particular location. It is different from the pressure associated with fluid velocity and should not automatically be treated as the same as total pressure.
Static Pressure vs Dynamic Pressure vs Total Pressure
When analyzing a flowing fluid, static pressure and dynamic pressure are often considered together. Total pressure represents the combination of the static and dynamic components under the applicable assumptions.
| Pressure Type | Meaning | Typical Importance |
|---|---|---|
| Static Pressure | Pressure exerted by the fluid independent of its velocity. | Process monitoring, vessel and pipe pressure measurement. |
| Dynamic Pressure | Pressure component associated with fluid velocity. | Flow and velocity analysis. |
| Total Pressure | Pressure associated with the combination of static and dynamic components. | Fluid-flow and aerodynamic analysis. |

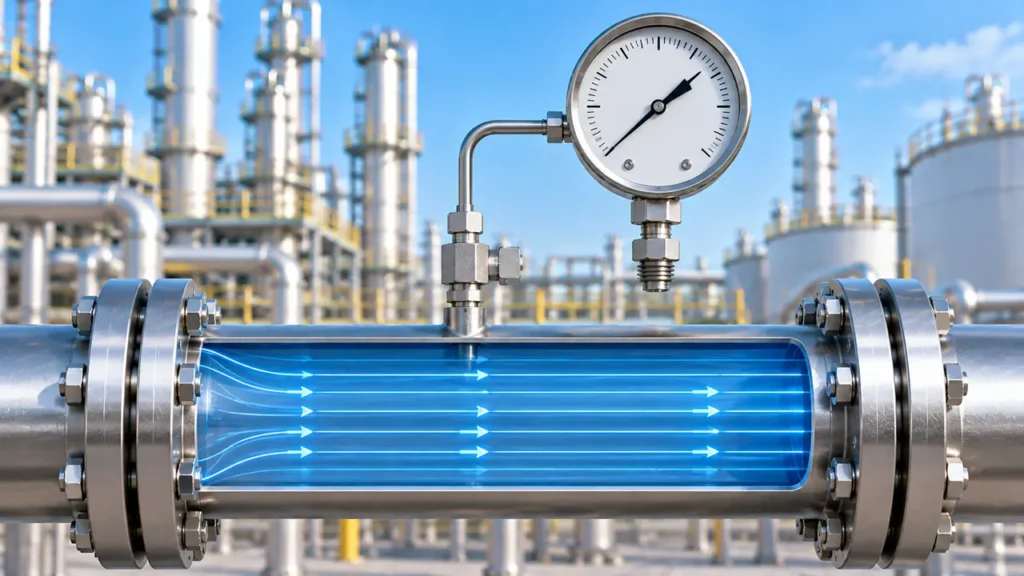

How Does Static Pressure Work in a Pipe?
In a pipeline, the fluid exerts pressure on the internal pipe wall. A pressure connection installed perpendicular to the main direction of flow can be used to sense the local static pressure.
Fluid Flow
→
Pipe Pressure
→
Pressure Tap
→
Pressure Instrument
The actual pressure distribution can change along the piping system because of elevation, friction, fittings, valves, pumps and changes in flow conditions. Therefore, the location where static pressure is measured is important when interpreting the measurement.
Why Is Static Pressure Important?
Static pressure provides valuable information about the condition of a fluid system. Monitoring it can help identify abnormal operating conditions, evaluate equipment performance and maintain safe process operation.
Process Monitoring
Static pressure provides a direct indication of the pressure condition at a selected point in the process.
Equipment Protection
Pressure monitoring can help identify conditions that may exceed the design or operating limits of process equipment.
Process Control
Pressure measurements can be transmitted to control systems and used for monitoring, alarming and automatic control.
Static Pressure in Industrial Applications
Static pressure is measured in many types of industrial systems. The measurement method and instrument depend on the process fluid, pressure range, temperature, accuracy requirement and installation conditions.
Pipelines
Static pressure measurements can be used to monitor pressure at different locations along pipelines and identify changes caused by equipment or piping conditions.
Process Vessels
Pressure measurement on vessels can provide information about operating conditions and can be used as an input to monitoring and control systems.
Pumps
Suction and discharge pressure measurements are commonly used to evaluate pump operating conditions. Comparing pressure at different points can provide useful information about system performance.
Compressors
Static pressure is important for monitoring compressor suction and discharge conditions and for supporting compressor control and protection strategies.
HVAC and Ventilation
Static pressure is widely used in ducts and air-handling systems to evaluate fan performance, filter loading, airflow resistance and building pressure conditions.
How Is Static Pressure Measured?
Static pressure can be measured using different types of pressure instruments. The correct choice depends on the pressure range, process requirements and whether local or remote measurement is required.
Pressure Gauge
A mechanical pressure gauge can provide a simple local indication of static pressure.
Pressure Transmitter
A pressure transmitter can convert static pressure into an electrical output for remote monitoring and process control.
Differential Pressure
Two static pressure measurements can be compared to determine the pressure difference between two points.
See our guide on types of pressure measurements to understand the different pressure measurement methods used in instrumentation.
Static Pressure Measurement in HVAC Systems
In HVAC systems, static pressure is commonly used to evaluate resistance to airflow through ducts, filters, coils and other components. Excessive pressure drop can indicate increased resistance and may affect fan performance and overall system efficiency.
Measuring static pressure at appropriate locations helps technicians and engineers understand how the air distribution system is operating and identify conditions such as blocked filters or restricted airflow paths.
KLEEV Tip:
In duct applications, the pressure measurement location and tapping method are important. Poorly positioned pressure taps can produce measurements that do not accurately represent the desired static pressure.
Static Pressure and Differential Pressure
Differential pressure is the difference between pressure measured at two points. When both measurement points represent static pressure, the difference can be used to determine the pressure drop across equipment or a section of piping.
Simple Example: Pressure Drop
Consider a filter installed in a process line. The upstream static pressure is measured at 6 bar and the downstream static pressure is 5.4 bar.
The pressure difference across the filter is:
Pressure Drop = 6 bar − 5.4 bar = 0.6 bar
Pressure drop across the filter = 0.6 bar
Increasing pressure drop across a filter, heat exchanger or other process component can be an indication of increased resistance or fouling, depending on the application.
Static Pressure in Flow Measurement
Static pressure is also important in flow measurement. Several flow measurement technologies use pressure as part of the measurement principle, while gas and steam applications may require pressure information for compensation.
For differential-pressure flow measurement, the pressure difference between the upstream and downstream sides of a primary element is used to determine flow. Static pressure can also be required for density compensation in certain gas and steam applications.
Proper pressure measurement therefore contributes to reliable flow measurement and correct process calculations.
Static Pressure vs Gauge Pressure
Static pressure and gauge pressure describe different aspects of a pressure measurement. Static pressure refers to the pressure condition of the fluid, while gauge pressure describes pressure relative to atmospheric pressure.
| Term | Definition | Reference |
|---|---|---|
| Static Pressure | Pressure of the fluid independent of its velocity component. | Depends on the selected pressure reference. |
| Gauge Pressure | Pressure measured relative to atmospheric pressure. | Atmospheric pressure. |
| Absolute Pressure | Pressure measured relative to a perfect vacuum. | Perfect vacuum. |
Static Pressure and Absolute Pressure
Static pressure can be expressed using different pressure references. For example, a static pressure measurement may be represented as gauge pressure or absolute pressure depending on the instrument and application.
This distinction is particularly important for gases, vacuum applications and processes where atmospheric pressure changes can affect the measurement.
Selecting the correct pressure reference is therefore an important part of pressure instrument specification.
Factors That Affect Static Pressure Measurement
Several factors can influence the static pressure measured at a particular location. These factors should be considered when designing or troubleshooting a pressure measurement system.
- Elevation differences in the process system.
- Fluid density.
- Pipe friction and pressure losses.
- Valves, elbows, tees and other fittings.
- Pump or compressor operation.
- Changes in flow rate.
- Temperature and process conditions.
- Incorrect pressure tapping location.
- Blocked or restricted impulse lines.
- Instrument calibration and installation errors.
Common Static Pressure Measurement Problems
Incorrect Pressure Tap Location
A pressure tap installed at an unsuitable location can produce a measurement that does not represent the intended static pressure. Pressure disturbances near valves, fittings and other flow restrictions should be considered.
Blocked Impulse Line
In pressure transmitter installations using impulse piping, contamination or process deposits can restrict the pressure path and cause slow or incorrect readings.
Air or Gas in Liquid Lines
Gas pockets in liquid pressure measurement systems can affect measurement stability and should be considered during installation and troubleshooting.
Temperature Effects
Process temperature can affect fluid properties and instrument performance. Suitable instrument selection and installation practices are important when operating over a wide temperature range.
How to Improve Static Pressure Measurement Accuracy
Reliable static pressure measurement starts with correct instrument selection and installation. The instrument range should be appropriate for the normal operating pressure while also accounting for expected maximum conditions.
- Select the correct gauge, absolute or differential pressure type.
- Choose an appropriate pressure range.
- Install pressure taps at suitable locations.
- Follow the manufacturer's installation requirements.
- Protect instruments from excessive vibration and pulsation where required.
- Keep impulse lines clean and properly installed.
- Consider process temperature and fluid compatibility.
- Calibrate and verify instruments according to the required maintenance program.
Proper installation and calibration are important contributors to dependable pressure measurement. Our article on measurement accuracy and repeatability provides additional insight into factors that influence industrial measurement performance.
Static Pressure Measurement Selection Checklist
| Selection Factor | What to Consider |
|---|---|
| Pressure type | Determine whether gauge, absolute or differential pressure is required. |
| Pressure range | Consider normal, minimum and maximum operating pressure. |
| Process fluid | Check compatibility of wetted materials with the process. |
| Temperature | Consider normal and maximum process and ambient temperatures. |
| Installation | Verify pressure tap location, impulse piping and mounting requirements. |
| Output | Choose local indication or an electrical/digital output for remote monitoring. |
| Accuracy | Select an instrument that meets the required measurement accuracy. |
| Environment | Consider vibration, humidity, hazardous areas and other environmental conditions. |
Conclusion
Static Pressure is a fundamental parameter used to understand the pressure condition of fluids in pipes, vessels, ducts and process equipment. Unlike dynamic pressure, it represents the pressure of the fluid independent of its velocity component and can be measured using suitable pressure connections and instruments.
Accurate static pressure measurement is important for process monitoring, equipment protection, differential-pressure measurement, flow applications and HVAC system performance. Selecting the correct pressure reference, instrument range and measurement location is essential for obtaining useful and reliable readings.
Whether using a pressure gauge, pressure transmitter or differential pressure instrument, proper installation, calibration and maintenance help ensure that the measured static pressure accurately represents the actual process condition.
