Flow Meter Signal Outputs: 4–20 mA, Pulse and Digital Communication Explained

Flow Meter Signal Outputs

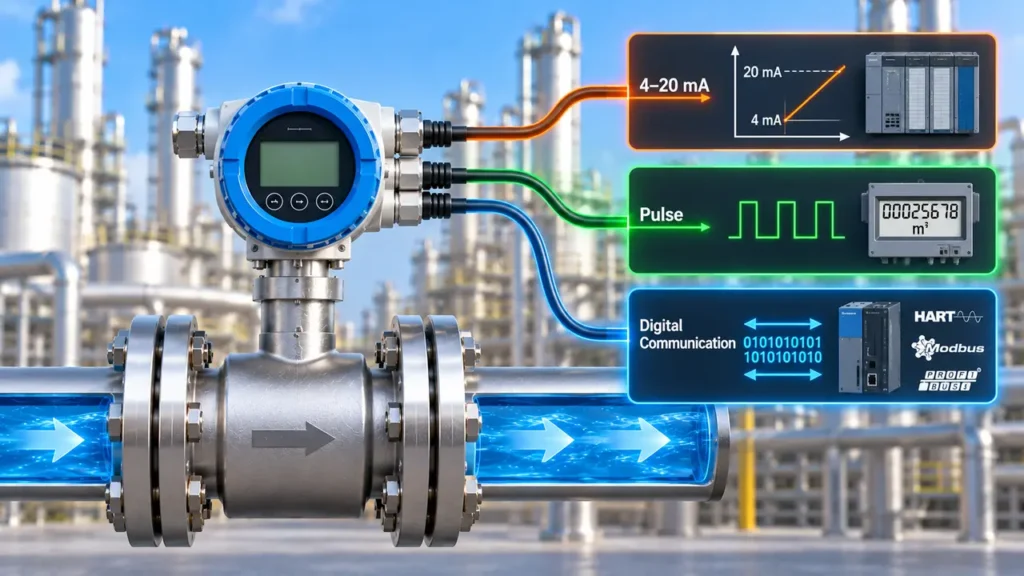

Flow Meter Signal Outputs transmit the measured flow value from the instrument to a control system, display, totalizer or monitoring device. The most common options include 4–20 mA, pulse or frequency signals and digital communication protocols.

What Are Flow Meter Signal Outputs?

A flow meter measures a process variable and converts that measurement into an electrical signal that another device can interpret. Depending on the meter, the output may represent instantaneous flow rate, totalized flow or additional diagnostic and process information.

4–20 mA Flow Meter Output

The 4–20 mA signal is one of the most widely used analog outputs in industrial instrumentation. The current normally represents a defined measurement range, with 4 mA corresponding to the lower range value and 20 mA corresponding to the upper range value.

For more details on current-loop operation and calculations, see 4 to 20 mA Current Loop Explained on InstrumentationBlog.

Why Is 4–20 mA Commonly Used?

The 4–20 mA signal is popular because it provides a standardized analog representation that is easy to integrate with industrial control systems.

• Widely supported by PLC and DCS analog input cards.
• Suitable for long-distance industrial signal transmission.
• Less affected by voltage drop than a voltage signal when properly designed.
• The live zero at 4 mA helps distinguish a valid zero measurement from a broken loop.
• Can be combined with digital communication such as HART.

Pulse Output From a Flow Meter

A pulse output provides discrete electrical pulses related to the measured flow. The number of pulses can represent accumulated volume, while pulse frequency can be used to determine instantaneous flow rate.

Pulse outputs are particularly common with turbine and other flow meters that generate a frequency signal from the sensing element.

For example, a turbine meter can generate pulses as its rotor rotates. The transmitter or flow computer uses the meter's K-Factor to convert those pulses into flow rate or total volume.

See Flow Meter K-Factor Explained for more information about pulse signals, K-Factors and flow calculations.

Pulse Output vs 4–20 mA Output

Digital Communication From Flow Meters

Modern flow meters can provide digital communication in addition to conventional analog or pulse outputs. Digital communication can provide more information than a single analog process value.

Depending on the protocol and instrument, digital communication may provide process variables, diagnostics, configuration parameters, device status and additional sensor information.

HART Communication With 4–20 mA

HART is an important example of digital communication used with industrial transmitters. It superimposes digital communication on the conventional 4–20 mA current loop.

This allows the analog signal to continue carrying the primary process variable while digital communication provides additional information such as diagnostics, configuration and secondary variables.

InstrumentationBlog's article on communication protocols in DCS systems explains how HART combines analog 4–20 mA with digital communication.

What Information Can Digital Communication Provide?

The exact information depends on the flow meter and communication protocol. A smart flow transmitter may provide considerably more information than the single value available through a conventional analog output.

• Primary flow measurement.
• Additional process variables.
• Device diagnostics.
• Sensor status.
• Configuration parameters.
• Calibration information.
• Device identification and tag information.
• Alarm and fault information.

For example, HART-enabled transmitters can provide multiple process variables and diagnostics while retaining the conventional 4–20 mA signal for the main process measurement.

4–20 mA vs Pulse vs Digital Communication

How to Select the Right Flow Meter Output

Output selection should begin with the requirements of the receiving control or monitoring system. The best output is not necessarily the one with the most features; it is the one that provides the required information in a compatible format.

Can a Flow Meter Have Multiple Outputs?

Yes. Many modern flow meters can provide more than one output simultaneously. A typical configuration may include a 4–20 mA output for the primary flow value, a pulse output for totalization and a digital communication interface for configuration and diagnostics.

Flow Meter Output Scaling

Analog outputs must be configured with a Lower Range Value (LRV) and Upper Range Value (URV). These values define the process range represented by 4 mA and 20 mA.

For more examples of 4–20 mA scaling and conversion, see 4 to 20 mA Signal Conversion .

Common Flow Meter Output Problems

Incorrect output configuration or wiring can cause a flow meter to appear faulty even when the sensing element is operating correctly.

• Incorrect 4–20 mA scaling.
• Wrong PLC/DCS input type.
• Incorrect pulse K-Factor.
• Wrong pulse or frequency input configuration.
• Incorrect signal polarity.
• Insufficient loop power.
• Incorrect digital communication settings.
• Communication address conflicts.
• Incorrect engineering units.

Output Signals and Flow Meter Selection

Signal output should be considered during flow meter selection, not after the instrument has already been purchased. The required output can influence the transmitter model, wiring, input cards and overall control-system architecture.

The process fluid, flow range, pressure, temperature, accuracy and installation requirements should first determine the appropriate measurement technology. The output configuration can then be selected to match the automation system.

For broader guidance, see our article on flow meter accuracy and repeatability and consider the complete application requirements before selecting the meter.

Flow Meter Signal Output Selection Checklist

Conclusion

Flow Meter Signal Outputs provide the connection between the flow measurement instrument and the plant control or monitoring system. 4–20 mA remains a widely used analog option, while pulse and frequency outputs are useful for counting and totalization.

Digital communication provides additional capabilities such as diagnostics, configuration and multiple process variables. HART is particularly useful because digital information can be communicated over a conventional 4–20 mA loop.

The correct output depends on the required measurement information, PLC or DCS compatibility, totalization requirements, communication architecture and application environment.
